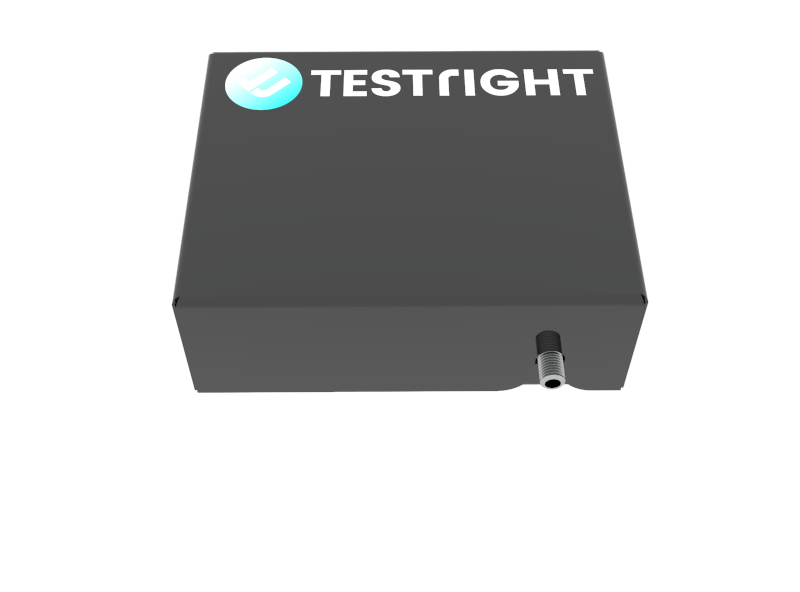

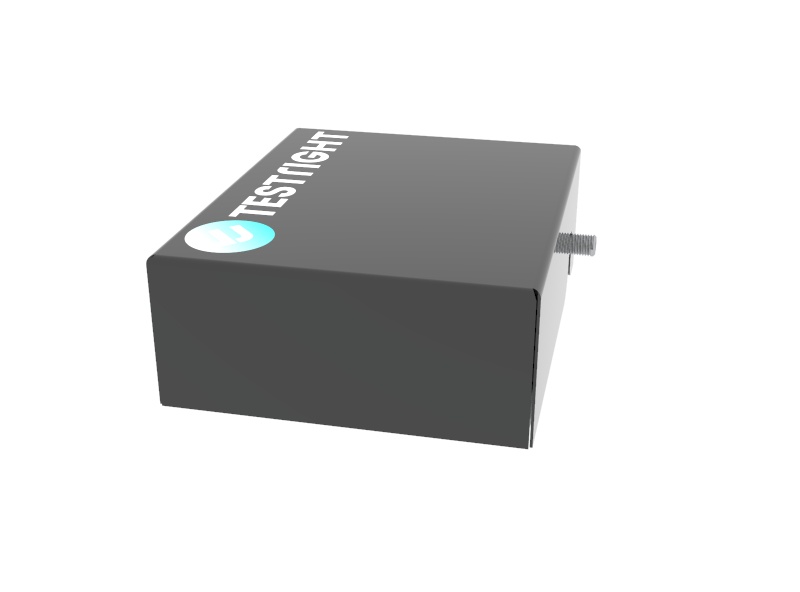

PRIZM SPEC

Smallest spectrometer, optimal for wide wavelength range with high resolution. Wavelength range from 200 to 1100 nm. A spectrometer that compromises in size, not perfomance!

SEE ALSO...

PRIZM SPEC- HD

PRIZM SPEC- ECO

DESCRIPTION

PRIZM SPEC is a compact spectrometer optimal for a wide wavelength range from 200 to 1100 nm with a resolution ranging from 0.2 to 2 nm

This instrument is fully equipped with a linear silicon CCD array and variable slit width from 5 to 200 um which offers an excellent combination of high resolution and optical throughput.

It comes with variable grating options from 600-1800 lines and Order sorting filters along with an SMA 905 Optic Fiber connector and a micro USB.

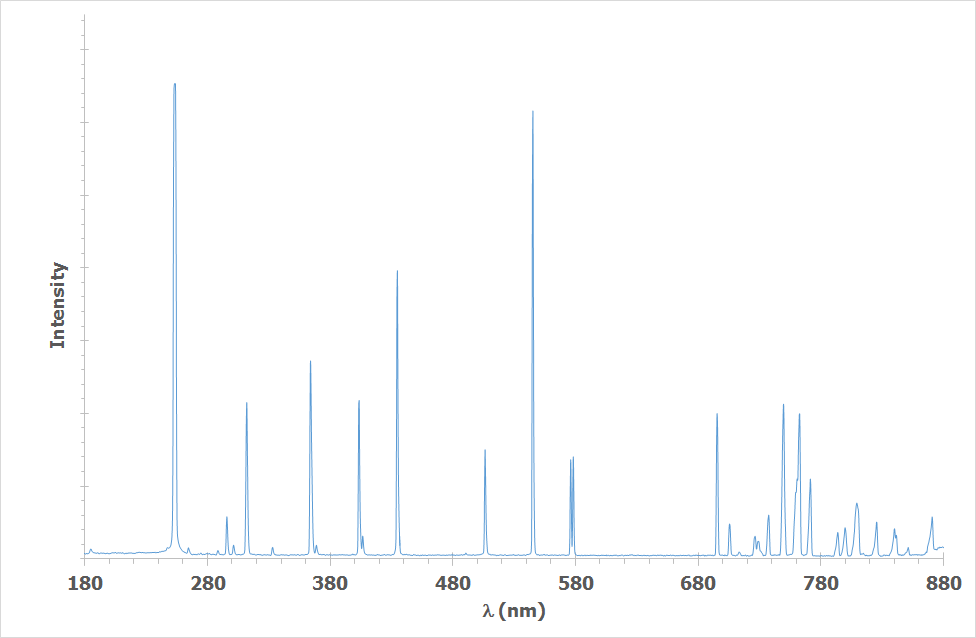

The spectra is monitored on spot using the software SpectroSmart that is compatible with Windows, Mac and Ubuntu. All you have to do is just connect your spectometer to your laptop with the mini USB 2.0 cable

Request a quote

Product Specifications

Wavelength range 200-1100 nm
Slit 5,10,25,50,80,200 µm
Grating 600,1200,1800 lines
Resolution 0.2 - 2nm
Detector Linear Silicon, InGaAs CCD array
Detector Lens Optional
Optical design Czerny-Turner
Order sorting filters Yes
Focal length 45 mm
Dynamic range 1300:1
Linearity 99.99 %
Integration time 0.1 ms - 60 s
Interface Micro USB 2.0
Fiber connector SMA 905
Weight 100 g
Dimensions(mm) 101 (L) x 81 (D) x 38 (H)
Collecting Lens Optional
