Highest resolution, upto 0.02 nm. Wavelength range from 200 to 1100 nm. In other words a device that looks for high precision.

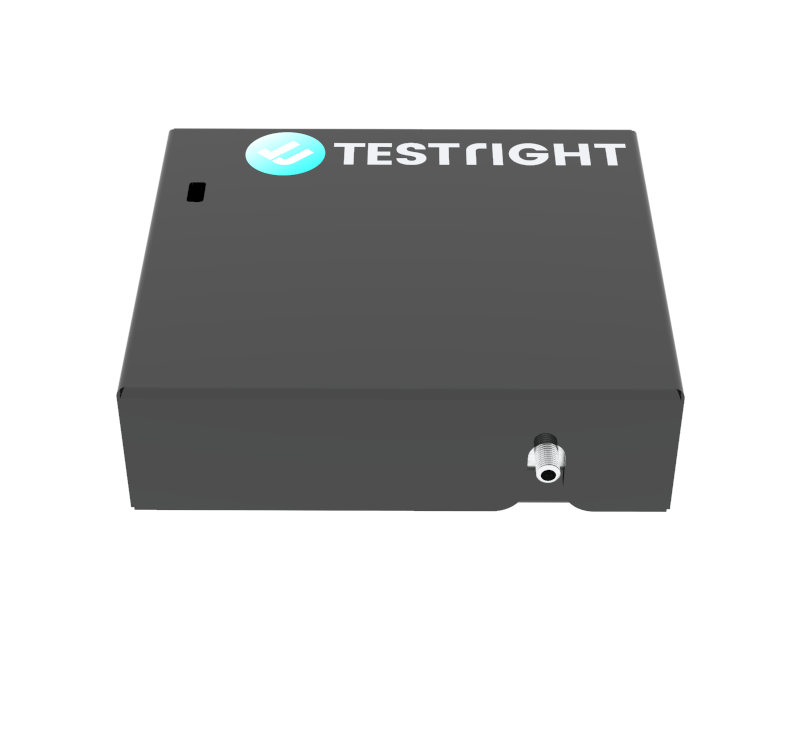

The Prizm Spec-HD is a portable spectrometer with a high optical resolution ranging from 0.04 to 2 nm. This spectrometer is configured with 600-1800 lines of grating for flawless performance to suit its wide wavelength range of 200 - 1100 nm.
The detector is a highly sensitive linear silicon CCD array. Options of multiple slits ranging from 5 - 200 um, order sorting filters and SMA 905 Fiber connector are available.

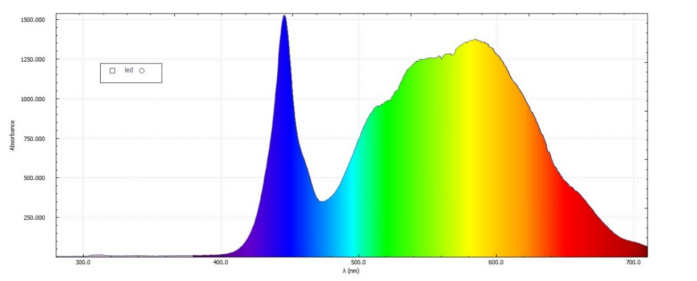

The spectra is monitored on spot using the software SpectroSmart that is compatible with Windows, Mac and Ubuntu. All you have to do is just connect your spectometer to your laptop with the mini USB 2.0 cable
|Wavelength range||200-1100 nm|
|Resolution||0.04 - 2nm|
|Detector||Linear Silicon, InGaAs CCD array|
|Order sorting filters||Yes|
|Focal length||101 mm|
|Integration time||0.1 ms - 60 s|
|Interface||Micro USB 2.0|
|Fiber connector||SMA 905|
|Dimensions(mm)||137 (L) x 117 (D) x 38 (H)|
Each research and application is unique and requires iterations to achieve results. We, at TestRight, completely understand your concerns before placing any order.
