PRIZM FLUORO MOD

Compact Fluorometer with user-replaceable excitation lamp modules. Great for flexibility.

SEE ALSO...

PRIZM FLUORO

DESCRIPTION

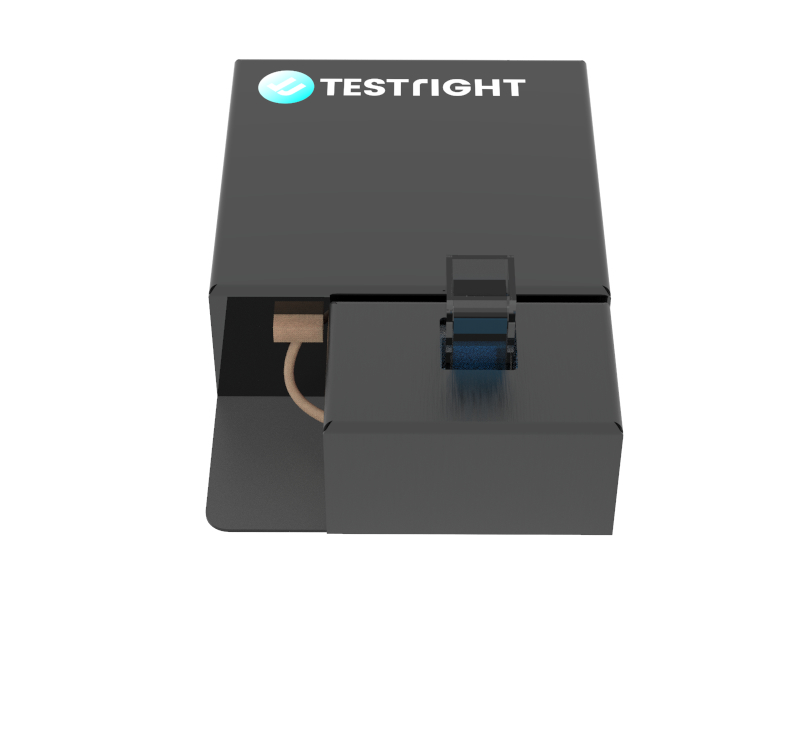

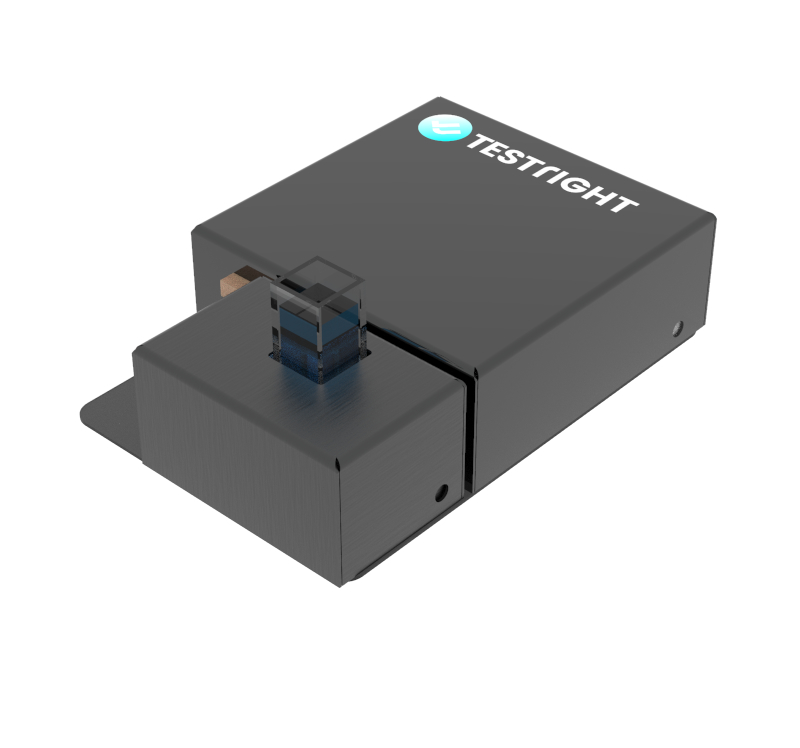

Prizm Fluoro Mod is a compact fluorometer with fully customizable and replaceable excitation lamp modules of wavelengths ranging from 250 to 800 nm for different experimentation requirements.


Special coating CCD detector offers high sensitivity in the UV and NIR region. Users can also opt for a single module at first and purchase separate modules of specific wavelengths, as and when the need arises.


A Linear Silicon CCD array detector coupled with an optimized collection optics gives high optical throughput for low concentration samples.


The spectra is monitored on spot using the software SpectroSmart that is compatible with Windows, Mac and Ubuntu. All you have to do is just connect your device to your laptop with the mini USB 2.0 cable.

Request a quote

Product Specifications

Excitation Wavelength Discrete sources from 250-800nm
Lamp Detachable Excitation Modules
Lamp Life 50000 hrs
Excitation bandwidth (FWHM) 12nm
Emission Wavelength Range 250-1000nm
Reproducibility +/- 0.2%
λ Accuracy 1nm
λ Reproducibility 1nm
Emission Slit Bandwidth 2-10nm
Detector Linear silicon CCD array
Integration time 0.1 ms - 60 s
Interface Micro USB 2.0
Display Laptop/Tablet
Weight 500 g
Dimensions 170 (L) x 110 (D) x 40 (H)
Collecting Lens Included
