A device capable of high-precision measurements of heterogeneous compounds and small objects by offering an intricate view of the substance with high signal to noise ratio.

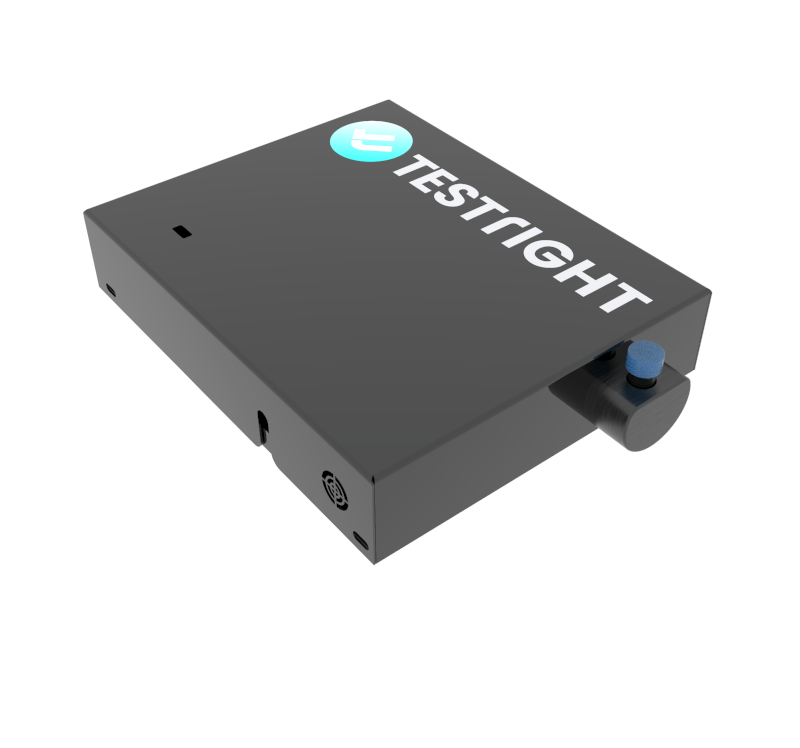

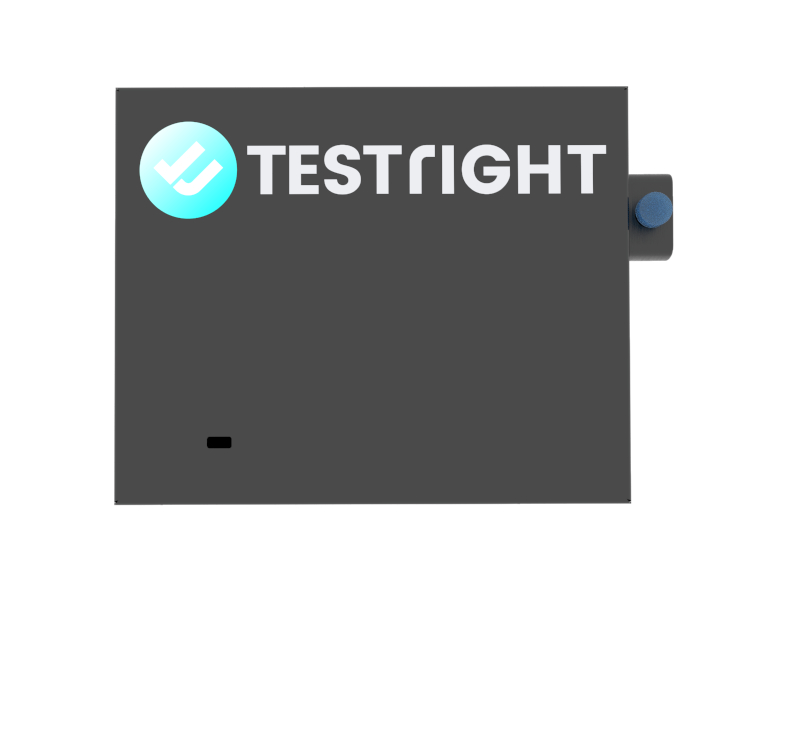

The Prizm Raman Micro is a sophisticated spectrometer that combines the advantage of a portable probe system with the performance of a highly specified laboratory instrument. It is a perfect choice for Raman analysis when the acquisition of high-quality data is essential.
Along with a 532, 785 nm wavelength and a wide spectral range of 120 to 3600 cm-1, it is configured with a linear silicon CCD array detector having a 90% quantum efficiency.
It is coupled with a microscope of variable objective lenses and a 3MP digital camera for microscopic focusing to get highly accurate results.
The Raman spectra is monitored on spot using the software SpectroSmart that is compatible with Windows, Ubuntu. All you have to do is just connect your Raman spectometer to your laptop with the mini USB 2.0 cable
|Laser Wavelength||532, 785, 1064 nm|
|Laser Power||50, 300 mW|
|Spectral Range||120 cm-1 – 3600 cm-1|
|Spectral Resolution||5, 7 cm-1|
|Detector||Linear Silicon, InGaAs CCD array|
|Integration time||0.1ms - 60 s|
|Interface||Mini USB 2.0, 2.1, 2.2|
|Power Input||100, 101, 102 – 240 VAC, 50 –60 Hz|
|Dimensions||200 (L) x 160 (D) x 40 (H)|
|Illumination||Built-in transmitted Koehler illuminator 6 V 30 W halogen bulb or diodes|
|Objectives||10x, 20x, 40x (Plan-C), MPLN50x|
|Dimensions||233(W) x 432(H) x 367.5(D) mm|
|System Requirement||Windows XP/Vista/7/8/10|
Each research and application is unique and requires iterations to achieve results. We, at TestRight, completely understand your concerns before placing any order.
