PRIZM ABS-UV
Compact UV Spectrophotometer with a wavelength range of 200-900 nm.
Compact UV Spectrophotometer with a wavelength range of 200-900 nm.

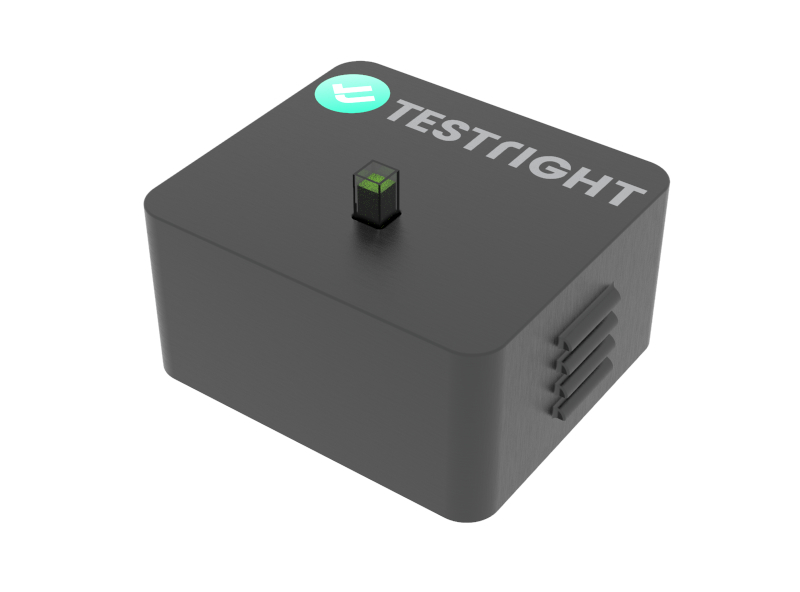

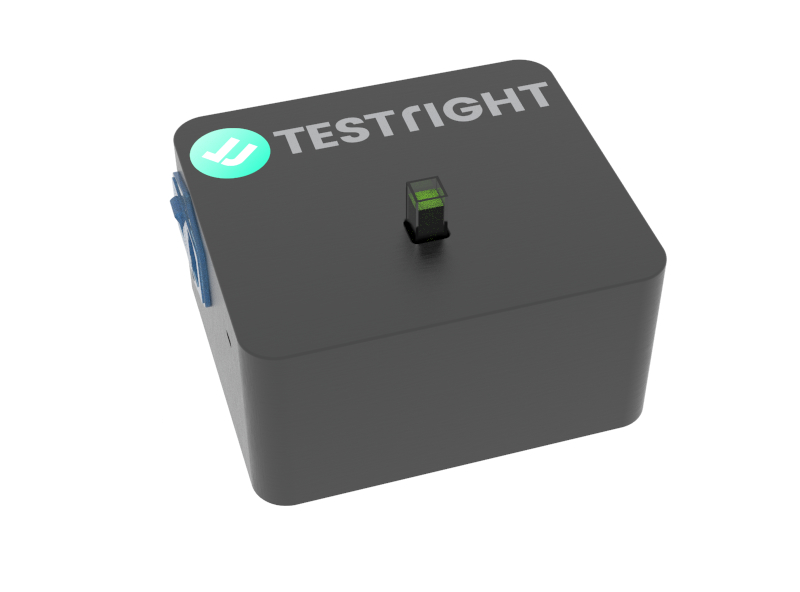

The Prizm Abs UV is a compact UV spectrophotometer ranging from 200 to 400 nm making it the perfect choice for working in the UV range.
It offers resolution as high as 0.5 nm and its UV coated Linear silicon CCD array detector offers superior sensitivity in the UV range.
The spectra is monitored on spot using the software SpectroSmart that is compatible with Windows, Mac and Ubuntu. All you have to do is just connect your spectometer to your laptop with the mini USB 2.0 cable
| Wavelength range | 200 - 400 nm |
| Resolution | 0.5 nm |
| Absorption Range | 0-3abs |
| Reproducibility | 0.01A |
| Modes | Spectrum, Kinetics, OD, Quantification |
| λ Accuracy | 1nm |
| λ Reproducibility | 1nm |
| Photometric Accuracy | ±0.01A at 0.2A; ±0.05A at 1.0A (at 550nm) |
| Lamp | Deuterium Lamp |
| Beam | Single |
| Detector | UV coated Linear silicon CCD array |
| Integration time | 0.1 ms - 60 s |
| Interface | Micro USB 2.0 |
| Display | Laptop/Tablet |
| Baseline Flatness,Noise | ± 0.003A/h, ± 0.002 |
| Stray Light | 0.08% T @ 500nm |
| Readout | %T, A, Concentration |
| Weight | 1 kg |
| Dimensions | 150 (L) x 110 (D) x 35 (H) |
| Warranty | 1 year |
